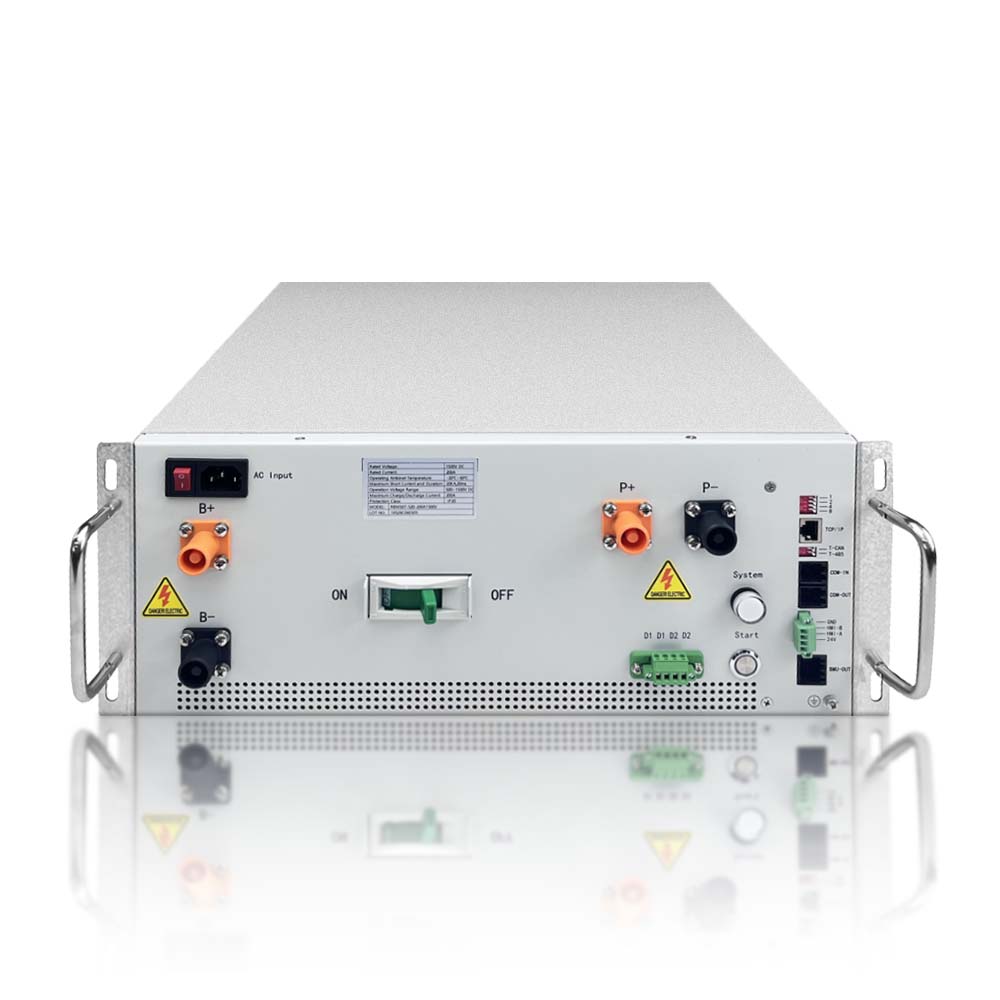

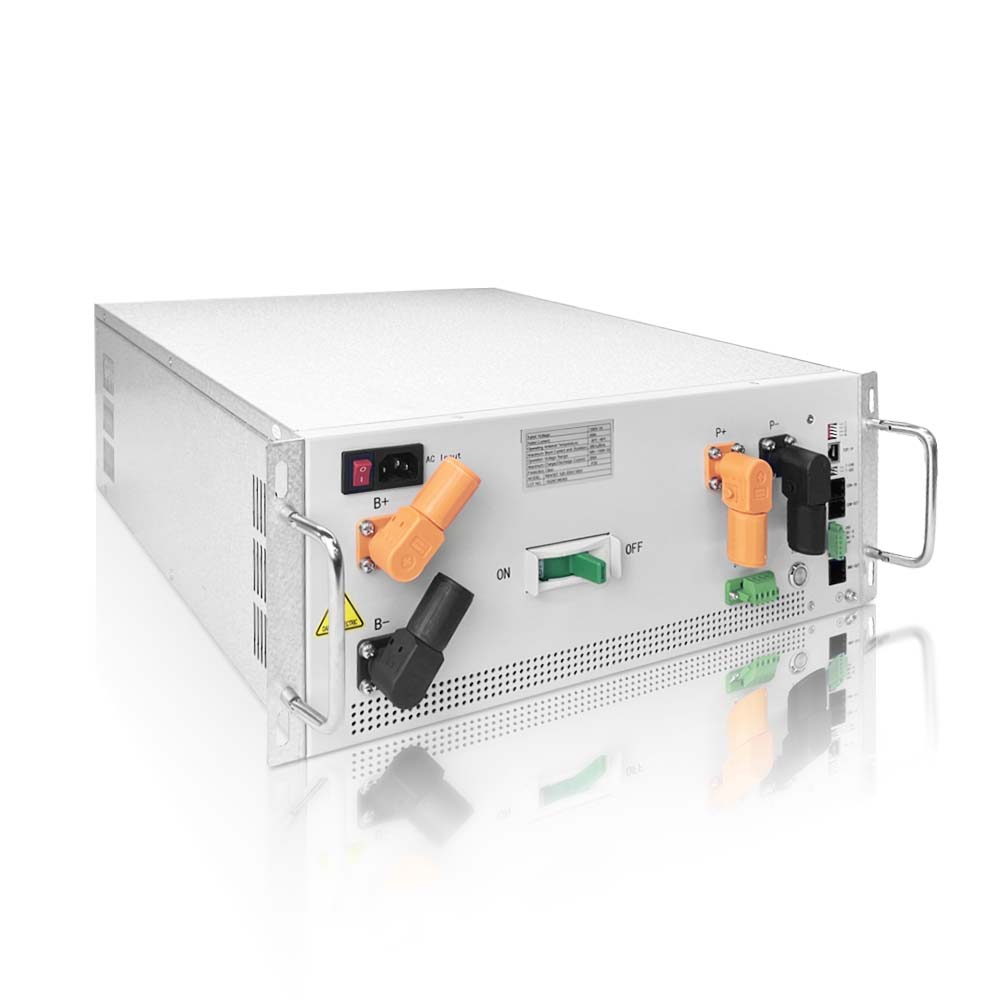

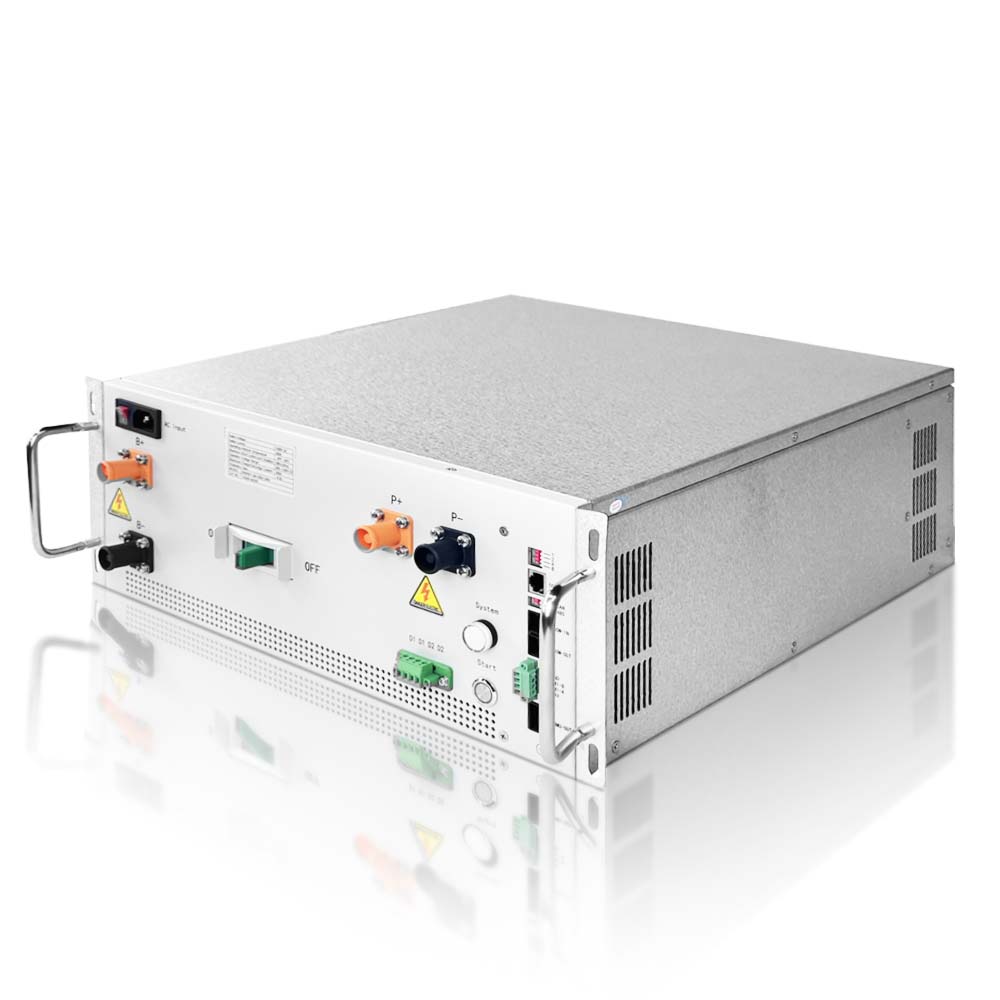

High Voltage BMS 288S BMS 921.6V 250A Lifepo4 BMS Battery Management System For Rack Mounted Lithium-ion Battery System
BMS Topology Diagram:
Our comprehensive BMS solution consists of a master RBMS, slave BMU, and wire harness. For applications with parallel multiple racks, an SBMS is required. The architecture utilizes a master-slave design with a high-precision collection chip. Each module supports 8-48 strings, expandable up to 410 strings in series. The overall BMS solution enables real-time monitoring of voltage, current, temperature, and other parameters via host computer software. It facilitates temperature management, balance management, high voltage and insulation detection for lithium-ion battery packs. Additionally, it calculates remaining capacity, charging/discharging power, and provides SOC & SOH status for power batteries.
GCE BMS Communicate With Many Inverters:
Product Description:

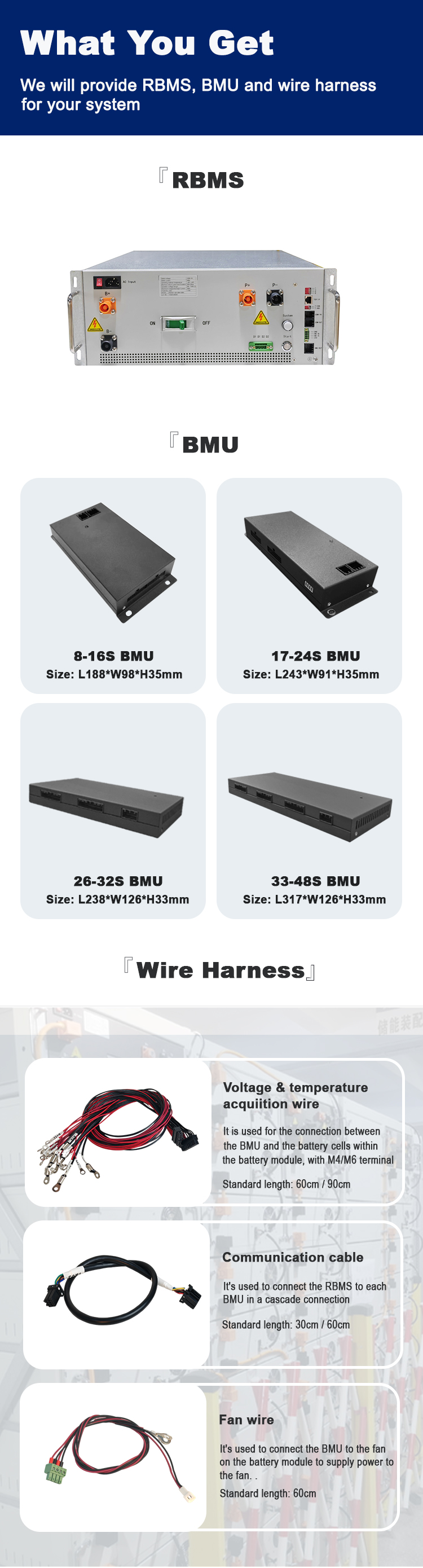

BMS comfiguration as below:
288S921.6V250A Master RBMS *1 sets
BMU02D-H16S08T48F *18 units
16S Wire Harness* 18 sets
Applications:
◎ PV power plant solar energy storage
◎ Island off-grid energy storage
◎ optical storage charge integration applications
◎ UPS power supply
◎ commercial and industrial energy storage
◎ Residential energy storage
◎ Low-speed vehicle applications,EV boat
Packing and Shipping:
At GCE, we prioritize the safe delivery and protection of your BMS (Battery Management System) product. Our meticulous packaging process includes the following steps:
Individual Protection: Each BMS unit is carefully wrapped in protective foam.
Sturdy Packaging: The wrapped units are then placed in a robust cardboard box with additional padding for added security.
Secure Sealing: The box is sealed using high-quality tape to prevent any potential damage or tampering during transit.
Clear Identification: The shipping label prominently displays both your address and our return address for easy identification.
For shipping, we rely on trustworthy and efficient courier services to ensure the timely and secure delivery of your BMS. Additionally, we provide tracking information,
allowing you to monitor the progress of your shipment.
Rest assured that your BMS will reach you in impeccable condition, ready for hassle-free installation and immediate use.
FAQ:
Manufacturer or Trading Company: We are a manufacturer and welcome factory visits.
Sample Availability: Yes, sample orders are available.
Cell Compatibility: LFP, NMC, LTO, etc.
Delivery Time: Approximately 15 to 20 working days, depending on specifications and quantity.
Payment Terms: Advanced T/T, negotiable for other terms.
Warranty: 3 years for RBMS, 1 year for BMU/PCBs.
Customization: Small adjustments can be made based on order quantity.
Quality Control: Stringent quality control processes are followed throughout production.
Trade Terms: No limitations, EXW for smaller orders, FOB for larger ones. DHL, UPS, and FedEx options are also available.
Installation and Testing: Our 4th generation high voltage BMS offers easy installation and testing, no professional expertise required.
Customer Benefits: Our high voltage BMS ensures stability, reliability, and efficient performance with comprehensive battery control and balance functions. System parameters can be tailored to meet specific customer needs.
.
