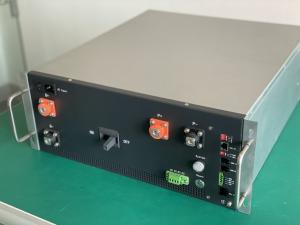

High Voltage Master BMS:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S20-250A336V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 4U (482*180*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 30 kgs |
Overall Solution BMS Configuration:
One complete set of HV 105S336V 250A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S20-250A336V
7sets 15S Slave BMU Model#: BMU07-15S8T48F
7sets 15S Wire Harness, including voltage&temperature sensoring wires, BMU communication wires,
Fan power wire.
Accessories:
12S-24S BMU(Slave)
12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power-supply, consumption less 20mA, CAN2.0 B communication
Wire harness-
Signal acquisition wire
18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm temperature sensor wire: standard length is 600mm,900mm,1200mm. Fan wire: 600mm
Wire harness-
communication wire
Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance
Applications:
Benefits of working with GCE BMS:
A globally active team of experts keep holding to solve your problem once you need,
Give reasonable and constructive suggestions and proposals,
A high degree of flexibility and tailored scope of services that closely follows developing trends in the industrial battery management system
A lean organization with fast time-to-market and competitive pricing
