Specification

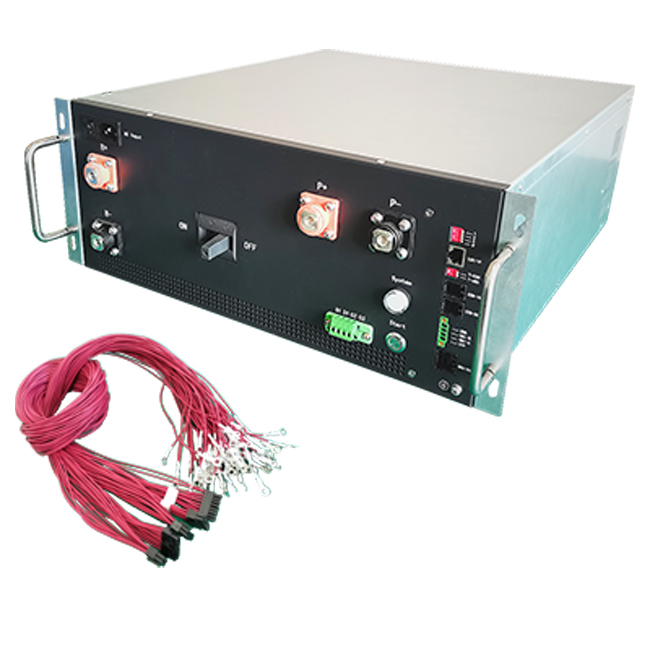

| Product Name | BMS |
| Model no. | RBMS07S2-0-250A624V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A |
| Voltage Range | 144V-624V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCs | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with RBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plug in) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 4U (440*178*500) |
| Way out | Front |
| Center Tap | Support(Optional) |
| Net weight | 23kg |
The company comes with the company's
communication protocol, but also according to customer needs to adapt to PCS of different manufacturers.

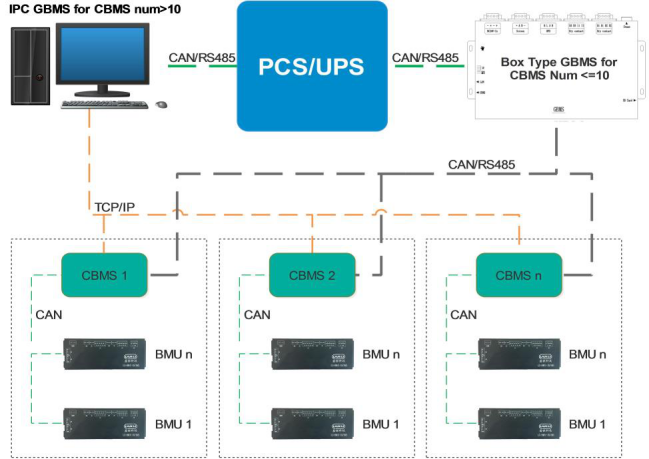

Application
Hunan GCE Technology Co., Ltd.
-Professional high voltage BMS(HV BMS) manufacturer
1. Devoated in BMS solution over ten years experience
2. Provide energy storage systems solution, BMS, battery pack and so on.
3. Customization solutions meet all your requirements
Packing
GCE BMS is committed to complying with and promoting the Corporate Social Responsibility (CSR) policy driven by GCE Group, with its related values channelled into 4 strategic areas:
1.Develop innovative products and processes while striving to minimise environmental impacts
2.Cascade our requirements and those of our customers to our suppliers and partners
3.Develop a team of high-performing personnel who fully support the Group’s integrity-based culture
4.Give priority to exchanges among all stakeholders, guaranteeing they obtain the level of performance they expect in terms of quality, security and cost
