384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter

Product Categories
Hunan GCE Technology Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter

Brand Name : Gce Hv BMS

Model Number : RBMSS20-160A-1228.8V

Certification : GB/T 16935.1 GB/T 17626.2 GB/T 17626.5 CE

Place of Origin : China

MOQ : 1 Sets

Price : Negotiable with toby@hngce.com

Payment Terms : T/T

Supply Ability : 2000 sets in one month

Delivery Time : 15 days after receive the payment

Packaging Details : 670*560*240mm Cartons

Rated Current : 160A

Max. voltage : 1500V

Model : RBMS-S20-160A-1500V

Master Bms Height : 4U

Max Current : 160A

Cell Monitoring : Individual Cell Voltage Monitoring

Operating Temperature : -20°C to 50°C

Battery charge &discharge management : Available

Battery temperature management : Available

IAP Upgrade : Available

Features : DC&AC Dual Power Supply

Communication Protocol : CAN/RS 485

Hmi Display : Supported

Material : Iron

Contact Now

1.Application scenarios

◎ PV power plant storage ◎ Island off-grid energy storage ◎ optical storage charge integration applications ◎ UPS power supply

2. Product system overview

RBMS(Rack BMS)products are battery management systems developed for large-scale high-voltage battery energy storage system applications. It adopts distributed architecture, modular design concept, high configurability, easy assembly, debugging and maintenance, and is applicable to various battery energy storage systems with DC voltage above 1000V to 1500V. This product can be configured as a two-level architecture (BMU+RBMS) at least, which is suitable for 50KWh-200KWh occasions. It can form a three-level architecture (BMU+RBMS+SBMS) in combination with the industrial personal computer and the battery stack management software, and is suitable for 200KWh-2MWh occasions.

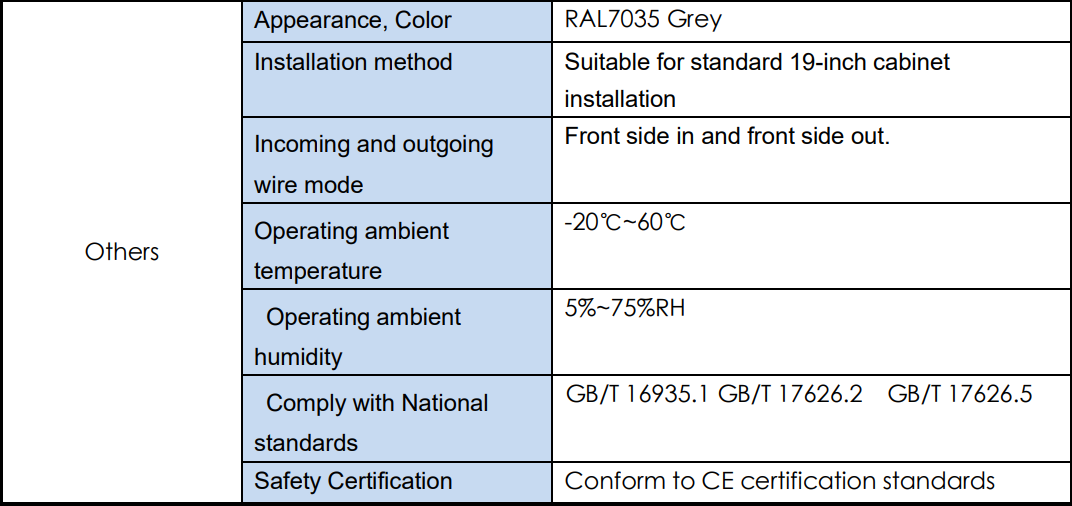

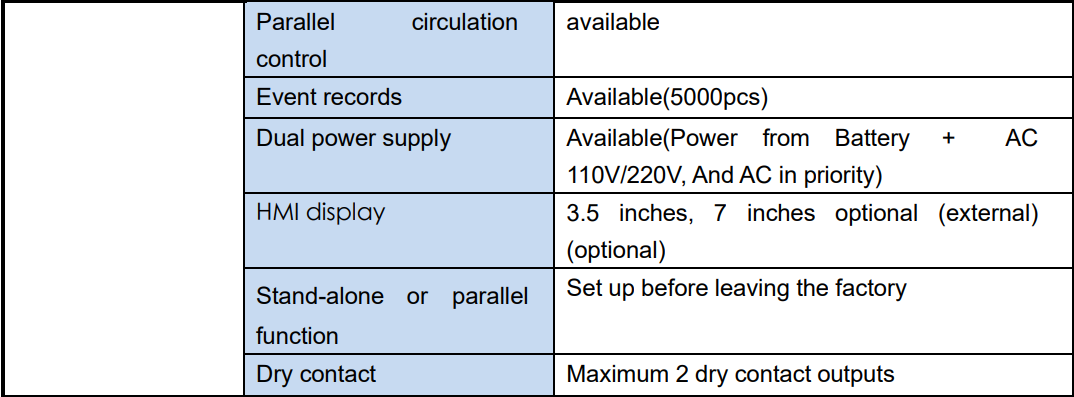

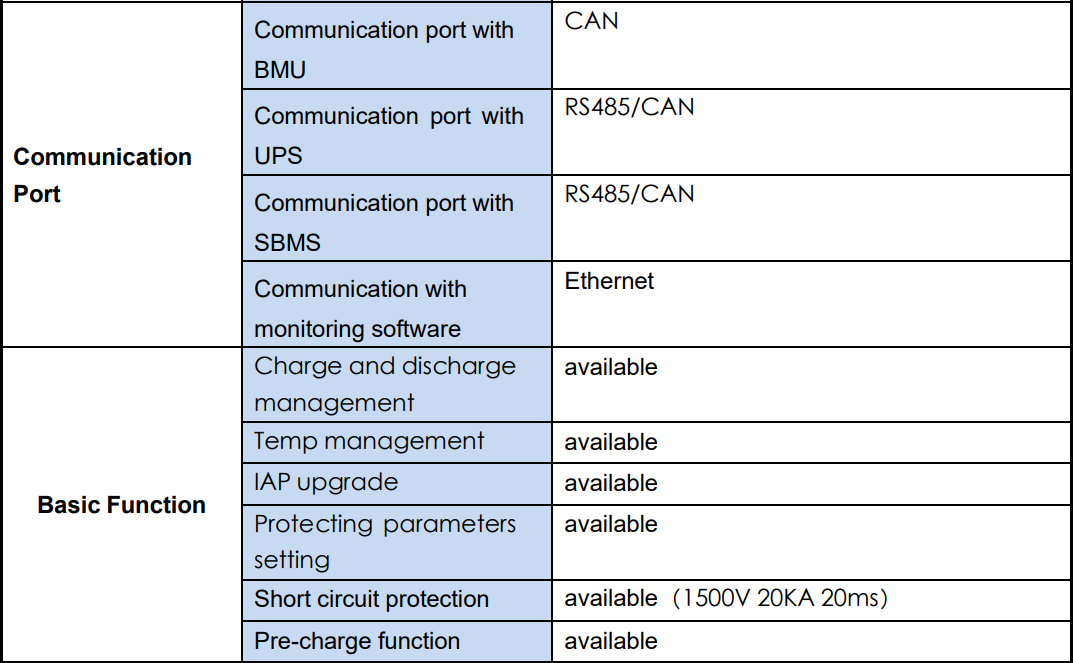

3. Main technical parameters of RBMS

384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter384S 1228.8V 160A GCE Master BMS With Effective Controlled Balance Compatible With Famous Inverter
