OEM 192V 125A Relay high voltage BMS(HV BMS) with 15S BMU for BESS UPS
Sistemas De Energia Solar Energy System For Large scale ESS Container
BESS Micro Grid ESS Home ESS Carport ESS Overall Solution BMS Battery Management System
Overall Solution BMS Configuration:

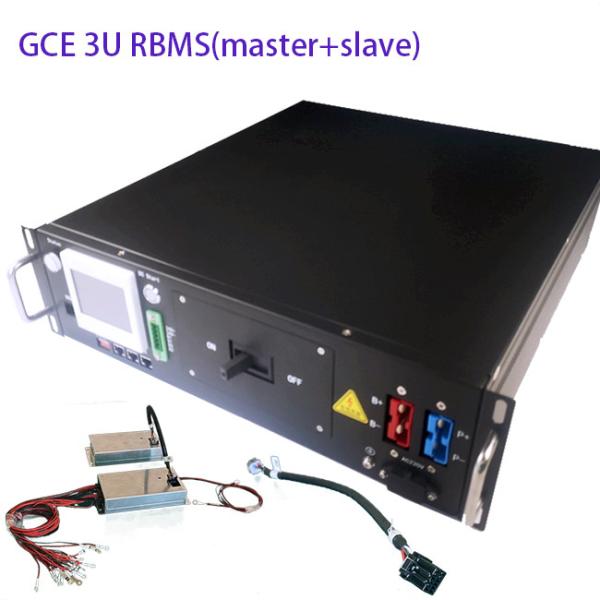

One complete set of HV 60S192V 125A BMS solutions includes:
1set Master BMS, Model#: RBMS07-S23-125A192V
4sets of 15S Slave BMU Model#: BMU07-15S8T48F
4sets of 15S Wire Harness, including voltage&temperature acquisition wires,
BMU communication wires, Fan power wires.
Features:
• Multi-string management – for large scale systems of parallel battery strings
• Battery system performance algorithms (SOC, SOHc,SOHr, power available, optimal charging)
• High voltage interlock loop monitoring and control
• Isolation resistance measurement
• Battery usage recorder
• Functional safety features protected by SafeRTOS
• Telematics – data collection

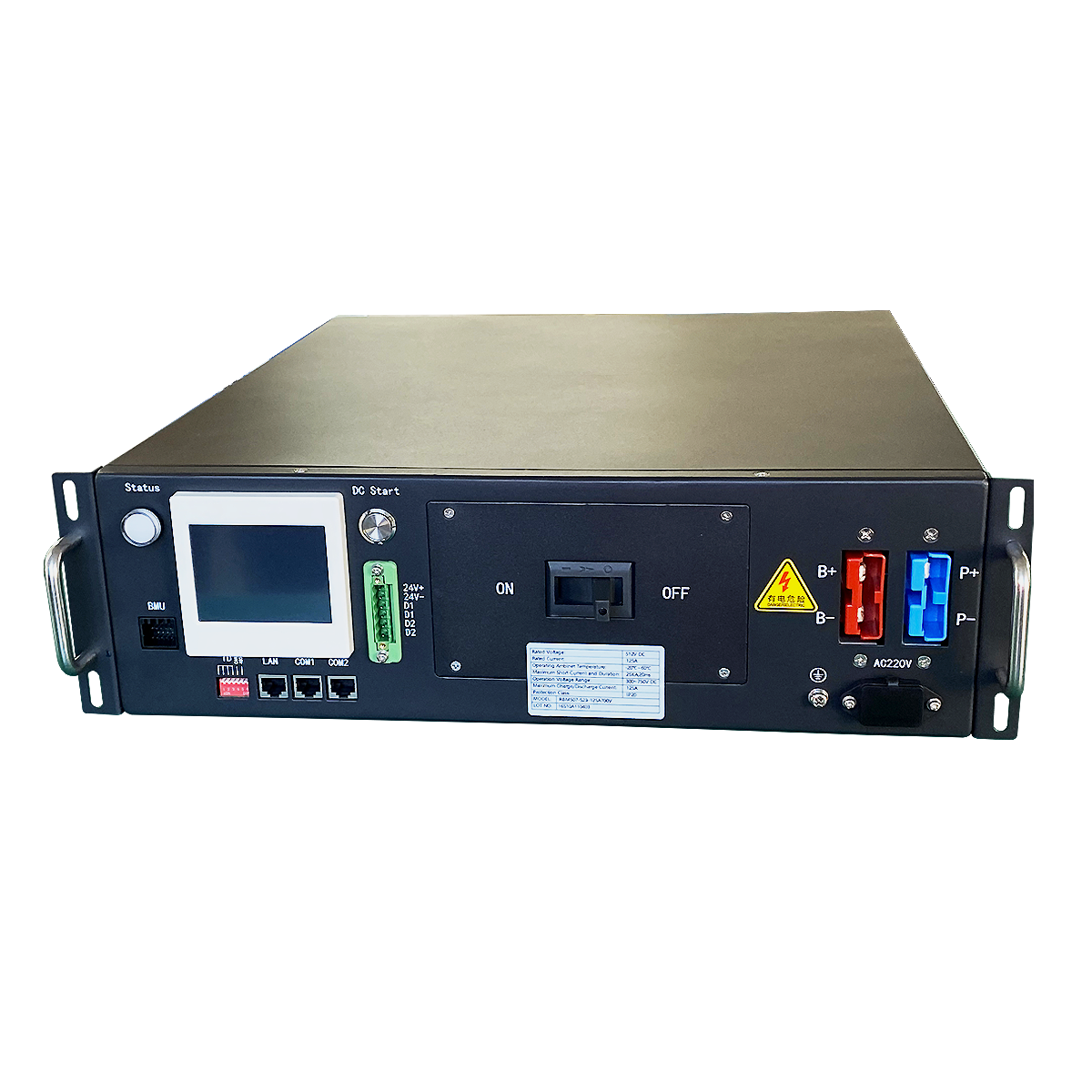

High Voltage Master BMS:
Accessories:
 |  |  |
| 12S-24S BMU(Slave) 12S-24S BMU has 8pcs of temperature sensors, Fan voltage 48V(17S-24S 12V), voltage detection range 0-5V,12V power
supply,consumption less 20mA, CAN2.0 B communication | Wire harness- Signal acquisition wire 18 Pin+20Pin wire, standard length is 600mm,900mm,1200mm temperature sensor wire: standard length is 600mm,900mm,1200mm Fan wire: 600mm | Wire harness- communication wire Communication wire is connecting from master BMS to each BMU with cascade connection, the last port is for terminal resistance |
Specification:
| Product Name | BMS(Battery Management System) |
| Model no. | RBMS07-S23-125A192V |
| protecting method | MCCB+Contactor |
| Rated Current range | -250A~250A(Max. 500A) |
| Voltage Range | 96V-1000V |
| Current Sampling Accuracy | 1.0%FSR |
| Communication interface with PCS | RS485/CAN |
| Communication interface with BMU | CAN |
| Communication interface with SBMS | RS485/CAN |
| Communication with monitoring software/EMS | Ethernet |
| Support IAP upgrade | Yes |
| Support HMI display and parameter | No(Optional plugin) |
| Insulation detection | Yes(Optional) |
| High voltage power module | Support DC start (optional) |
| Dry contact output (normally open) | No |
| Maximum qty of BMUs | 20 |
| Power | 24VDC(18~28V) |
| Power consumption | ≤20W |
| Size(W*H*D)mm | 3U (482*132*500) |
| Way out | Front |
| Tap center | Support(Optional) |
| Net weight | 23 kgs |
Related Products:
Applications:
Linkage for downloading specifications for master BMS and slave BMU:
GCE_RBMS specification--EN--V1.0.pdf
GCE 12-16S BMU-specification-UL-V1.0.pdf
Linkage for downloading of BMS demand information collection form:
high voltage BMS(HV BMS) info collection form EN2021-04.do...
Ideal for energy storage applications where high performance and high reliability are key to successful integration:
◎ Battery Energy Storage System(BESS)
◎ Off-grid energy storage
◎ Data Center
◎ Grid frequency modulation energy storage
◎ Track power / traction ◎ LFP UPS power supply
