Brand Name : GCE
Model Number : RBMS07S20-250A768V
Certification : CE
Place of Origin : China
MOQ : 2
Price : Negotiable with jeffreyth@hngce.com
Supply Ability : 1000pcs per month
Delivery Time : 20-25days
Packaging Details : Carton packaging
size : 440mm*178mm*500mm
weight : 28kg
voltage : 48V-768V
current : 250A/ 275A for 10s
tempreture : -20℃~60℃
HMI display : external connection (optional)
Insulation detection : for minimum 300V systems
Power consumption : ≤25W sleeping mode
comnunication : RS485 CAN TCPIP
GCE 768V 250A original manufacture 4U high voltage BMS LFP NMC LTO battery packs lithium BMS for power solution
This is our the 4th generation high voltage bms.It's an overall bms solution, that is to say,You don't need professional technology to install our high-voltage BMS to form a complete battery system.

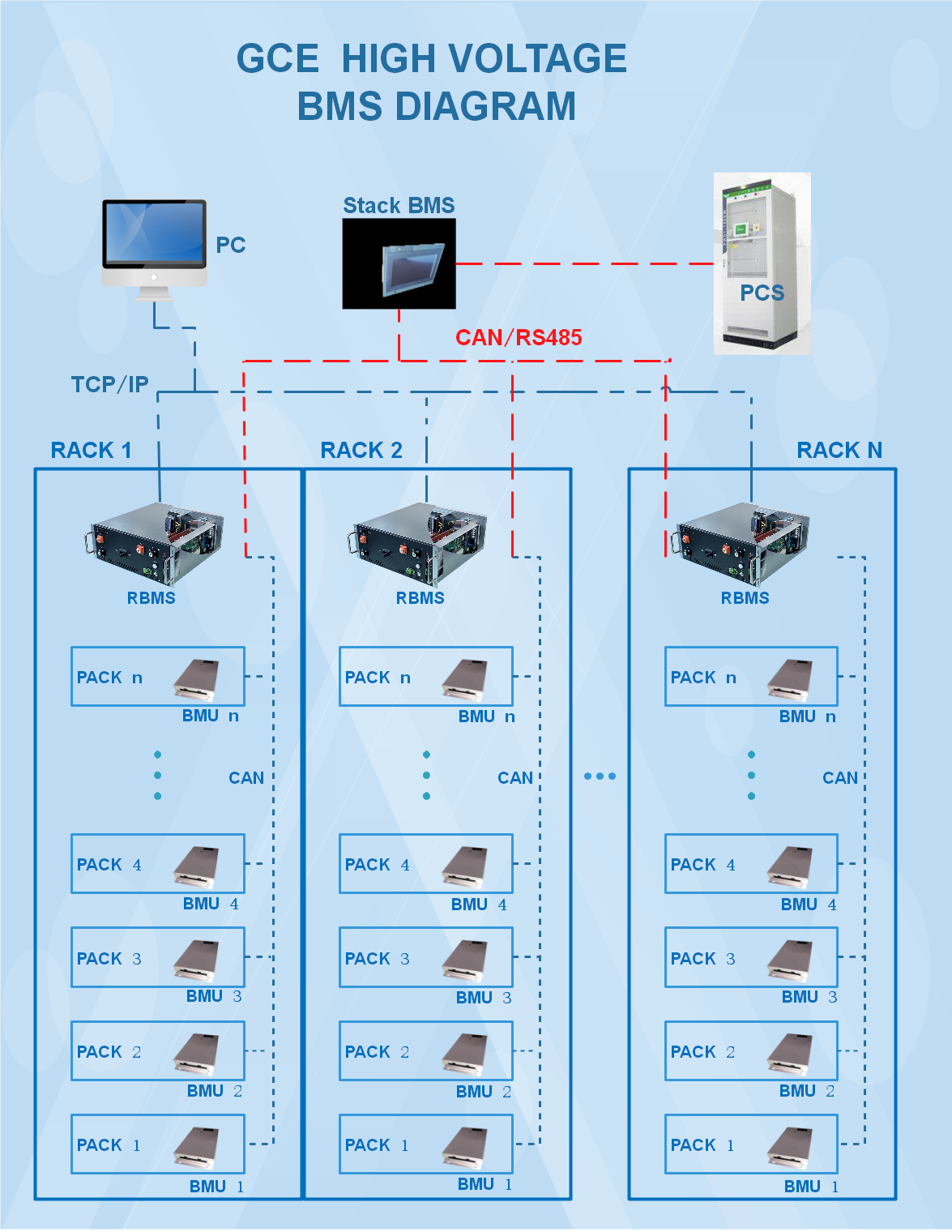

GCE high voltage BMS structure:
GCE high voltage BMS parameters:
RBMS(master BMS) | 4U-250A |
protecting method | MCCB+Contactor |
Rated Current range | -250A~250A |
Voltage range | 384V-1000V |
Current sampling accuracy | 1.0%FSR |
Communication interface with PCS | RS485/CAN |
Communication interface with BMU | CAN |
Communication interface with GBMS | RS485/CAN |
Communication with monitoring software/EMS | Ethernet |
Support IAP upgrade | Yes |
Support HMI display and parameter settings | No(OptionalPlug in) |
Insulation detection | Yes(Optional) |
High voltage power module | Support DC start (optional) |
Dry contact output (normally open) | None |
Maximum qty of BMUs | 18 |
Power | 24VDC(18~28V) |
Power consumption | ≤25W |
Size (W*H*D)mm | 4U |
(440*178*600) | |
Connection Way out | Back and front |
Tap center | support(optional) |
net weight | 23kg |
![]() |

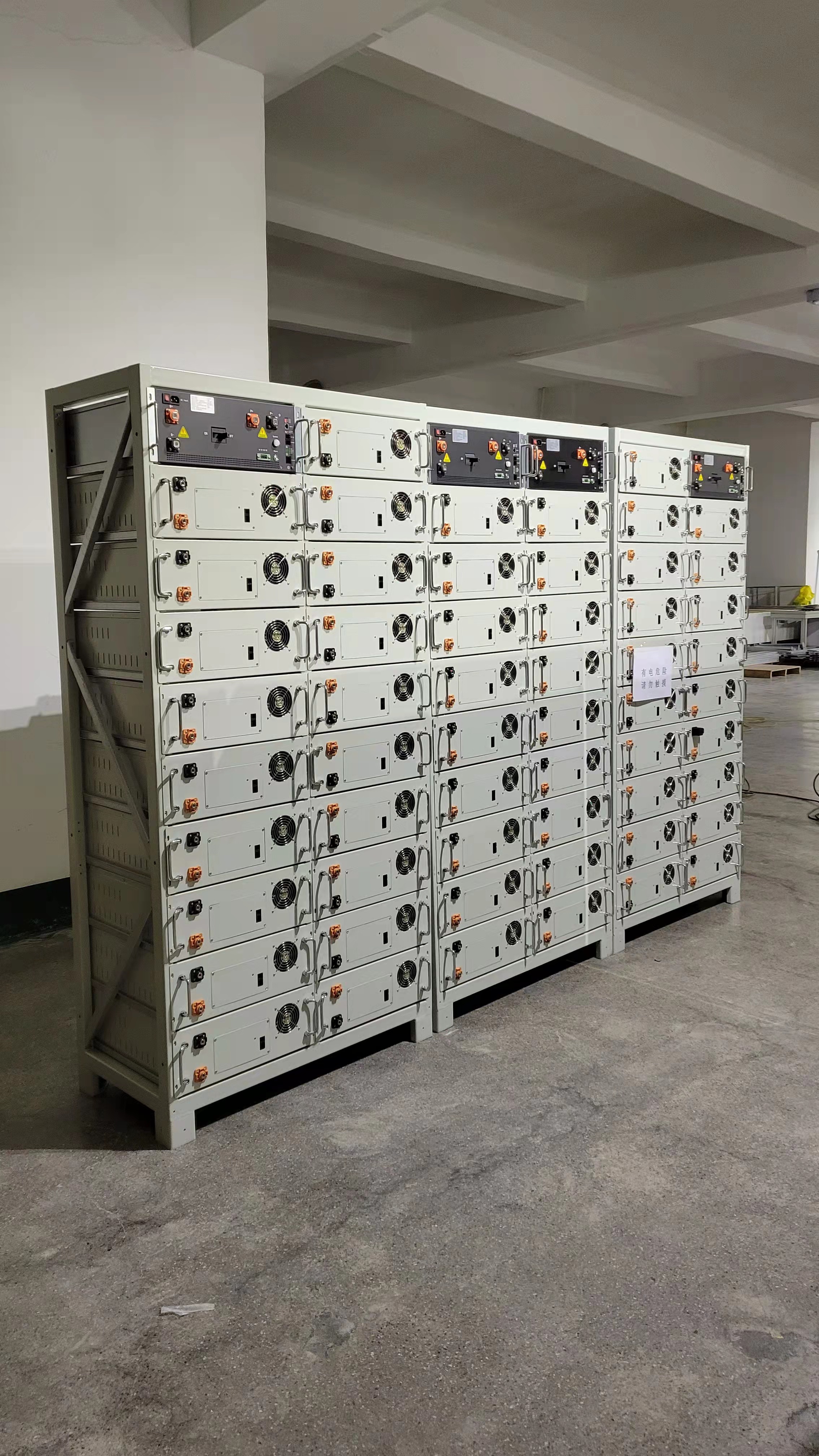

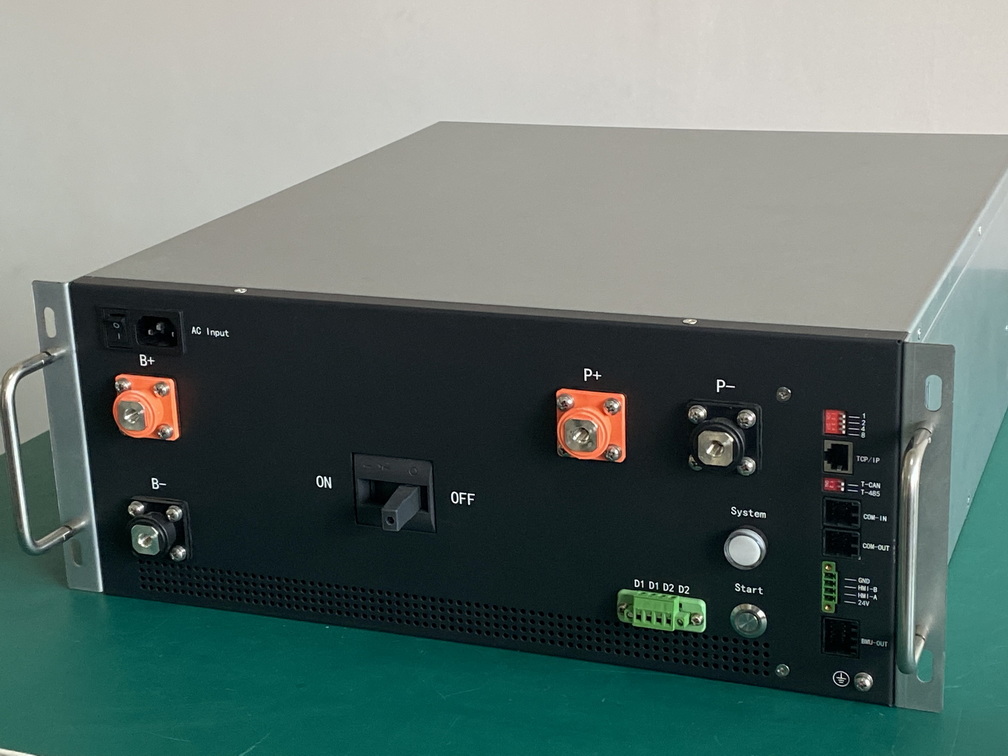

GCE 768V 250A 4s LFP BMS 4U High Voltage For Power Solution Images |
